XMA社製品カタログ
(英文:PDF 15.1 MB)

製品案内

XMA
 (エックスエムエー社:アメリカ)

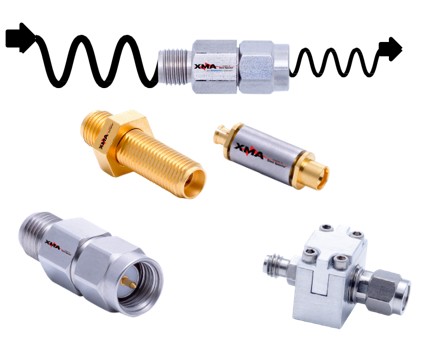

■アッテネータ(極低温対応品あり)
 〜Attenuator〜


 XMA社では、極低温/航空宇宙用途に適した高性能アッテネータをご提供いたします。 量子コンピュータ用途に特化した各種製品もラインナップしております。

< 特 色 >
 -DC-110GHz frequency
 -0.5 to 250W power
 -各種コネクタタイプ
 -標準 0, 3, 6, 10, 20, 30 dB
 -量子コンピュータ用 極低温対応バルクヘッドタイプ


■製品ラインナップ

●極低温対応品
 SMA, 2.92mm, 2.4mm, 1.85mm, 2.92mm bulkhead, SMP, SMPM,Thread-in タイプ


製品名 型番 コネクタ 周波数 電力 備考 データシート
Attenuators 6782-6165-00-CRYO 1.85mm-m/f 65GHz 1W 減衰量:〜30dB, 20mケルビン
Attenuators 4880-5522-dB-CRYO 2.92mm-f/f 40GHz 1W 減衰量:〜30dB, バルクヘッド
Attenuators 4882-6040-dB-CRYO 2.92mm-f/f 40GHz 0.5W 減衰量:〜30dB
Attenuators 4882-6140-dB-CRYO 2.92mm-f/f 40GHz 1W 減衰量:〜30dB
Attenuators 4882-5008-00-CRYO 2.92mm-f/f 40GHz 2W 減衰量:0dB
Attenuators 4882-6240-dB-CRYO 2.92mm-f/f 40GHz 2W 減衰量:〜30dB
Attenuators 4880-5523-dB-CRYO 2.92mm-f/f, bulkhead 18GHz 1W 減衰量:〜30dB, バルクヘッド
Attenuators 4880-5521-dB-CRYO 2.92mm-f/f 10GHz 1W 減衰量:〜30dB, バルクヘッド
Attenuators 2682-6460-dB-CRYO SMA-m/f 26.5GHz 2W 減衰量:〜30dB
Attenuators 2782-6051-dB-CRYO SMA-m/f 26.5GHz 2W 減衰量:〜30dB
Attenuators 2082-5026-00-CRYO SMA-m/f 18GHz 2W 減衰量:0
Attenuators 2082-604X-dB-CRYO SMA-m/f 18GHz 2W 減衰量:〜30dB, ALUMINA
Attenuators 2082-619X-dB-CRYO SMA-m/f 18GHz 2W 減衰量:〜60dB
Attenuators 2082-624X-dB-CRYO SMA-m/f 18GHz 2W 減衰量:〜30dB
Attenuators 2082-6340-dB-CRYO SMA-m/f 18GHz 2W 減衰量:〜30dB
Attenuators 2082-6418-dB-CRYO SMA-m/f 18GHz 2W 減衰量:〜30dB
Attenuators 2081-619X-dB-CRYO SMA-m/f 18GHz 2W 減衰量:〜60dB
Attenuators 2982-6140-dB-CRYO SMP-m/f 18GHz 1W 減衰量:〜30dB
Attenuators 2082-602X-dB-CRYO SMA-m/f 12.4GHz 2W 減衰量:〜30dB
Attenuators 2082-601X-dB-CRYO SMA-m/f 6GHz 2W 減衰量:〜30dB

●標準 航空/宇宙用途品
 SMA, SMP, SMPM, N, BNC, TNC, 2.92mm, 2.4mm, 1.85mm


製品名 型番 コネクタ 周波数 電力 備考 データシート
Attenuators 6782-5001-dB 1.85mm-m/f 65GHz 1W 減衰量:〜15dB
Attenuators 6782-6165-dB 1.85mm-m/f 65GHz 1W 減衰量:〜30dB
Attenuators 8582-6050-dB 2.4mm-m/f 50GHz 0.5W 減衰量:〜30dB
Attenuators 8582-6150-dB 2.4mm-m/f 50GHz 1W 減衰量:〜30dB
Attenuators 4880-6040-dB 2.92mm-f/f 40GHz 0.5W 減衰量:30dB
Attenuators 4880-6140-dB 2.92mm-f/f 40GHz 1W 減衰量:30dB
Attenuators 4880-6240-dB 2.92mm-f/f 40GHz 2W 減衰量:30dB
Attenuators 4882-6040-dB 2.92mm-f/f 40GHz 0.5W 減衰量:30dB
Attenuators 4882-6140-dB 2.92mm-f/f 40GHz 1W 減衰量:30dB
Attenuators 4882-6240-dB 2.92mm-f/f 40GHz 2W 減衰量:30dB
Attenuators 2682-6460-dB SMA-m/f 26.5GHz 2W 減衰量:30dB
Attenuators 2782-6051-dB SMA-m/f 26.5GHz 2W 減衰量:30dB
Attenuators 2782-6426-dB SMA-m/f 26.5GHz 2W 減衰量:30dB
Attenuators 2082-6502-dB SMA-m/f 18GHz 10W 減衰量:40dB
Attenuators 2082-6525-FQ-dB SMA-m/f 18GHz 25W 減衰量:40dB
Attenuators 2082-604X-dB SMA-m/f 18GHz 2W 減衰量:〜30dB, DFARS
Attenuators 2082-613X-dB SMA-m/f 18GHz 2W 減衰量:〜12.5dB
Attenuators 2082-614X-dB SMA-m/f 18GHz 2W 減衰量:〜30dB
Attenuators 2082-619X-dB SMA-m/f 18GHz 2W 減衰量:〜60dB, DFARS
Attenuators 2082-624X-dB SMA-m/f 18GHz 2W 減衰量:〜30dB, DFARS
Attenuators 2082-6340-dB SMA-m/f 18GHz 2W 減衰量:〜12dB, DFARS
Attenuators 2082-6418-dB SMA-m/f 18GHz 2W 減衰量:〜30dB
Attenuators 2082-6524-dB SMA-m/f 18GHz 5W 減衰量:〜40dB
Attenuators 2080-619X-dB SMA-m/f 18GHz 2W 減衰量:〜60dB
Attenuators 2081-619X-dB SMA-m/f 18GHz 2W 減衰量:〜60dB
Attenuators 2082-602X-dB SMA-m/f 12.4GHz 2W 減衰量:〜30dB
Attenuators 2082-603X-dB SMA-m/f 12.4GHz 2W 減衰量:〜12.5dB
Attenuators 2082-618X-dB SMA-m/f 12.4GHz 2W 減衰量:〜13dB
Attenuators 2082-6510-10 SMA-m/f 12.4GHz 5W 減衰量:〜40dB
Attenuators 2082-6504-dB SMA-m/f 6GHz 10W 減衰量:〜40dB
Attenuators 2082-601X-dB SMA-m/f 6GHz 2W 減衰量:〜30dB
Attenuators 2082-617X-dB SMA-m/f 6GHz 2W 減衰量:〜60dB
Attenuators 2082-6346-dB SMA-m/f 6GHz 2W 減衰量:〜30dB
Attenuators 2082-6446-dB SMA-m/f 6GHz 2W 減衰量:〜30dB
Attenuators 2082-6526-dB SMA-m/f 6GHz 5W 減衰量:〜30dB
Attenuators 2080-7600-06-30 SMA-m/f 6GHz 100W 減衰量:30dB
Attenuators 2982-6140-dB SMP-m/f 18GHz 1W 減衰量:〜20dB
Attenuators 2881-6140-dB SMPM-m/m 18GHz 2W 減衰量:〜20dB
Attenuators 3782-600X-dB TNC-m/f 18GHz 2W 減衰量:〜30dB
Attenuators 3782-6525-FQ-dB TNC-m/f 6GHz 25W 減衰量:〜50dB
Attenuators 3082-6502-dB N-m/f 18GHz 10W 減衰量:〜40dB
Attenuators 308X-6525-FQ-dB N-m/f 18GHz 25W 減衰量:〜50dB
Attenuators 3082-619X-dB N-m/f 18GHz 2W 減衰量:〜60dB
Attenuators 3082-7001-dB N-m/f 18GHz 2W 減衰量:〜40dB
Attenuators 3082-6524-dB N-m/f 18GHz 5W 減衰量:〜40dB
Attenuators 3082-7550-FQ-dB N-m/f 18GHz 50W 減衰量:〜50dB
Attenuators 3082-7600-FQ-dB N-m/f 8GHz 100W 減衰量:〜60dB
Attenuators 3082-7650-FQ-dB N-m/f 8GHz 150W 減衰量:〜60dB
Attenuators 3082-6156-dB N-m/f 6GHz 2W 減衰量:〜40dB
Attenuators 3282-7001-dB BNC-m/f 4GHz 2W 減衰量:〜30dB
Attenuators AD80-7550-FQ-dB High Power SMA-7/16 18GHz 50W 減衰量:〜50dB
Attenuators AD80-7600-FQ-dB High Power SMA-7/16 8GHz 100W 減衰量:〜60dB
Attenuators AD80-7650-FQ-dB High Power SMA-7/16 8GHz 150W 減衰量:〜60dB



●お見積のご用命、お問合せ等は こちらのフォーム または
   電子メール info@comcraft.co.jp までお気軽にご連絡下さい。
