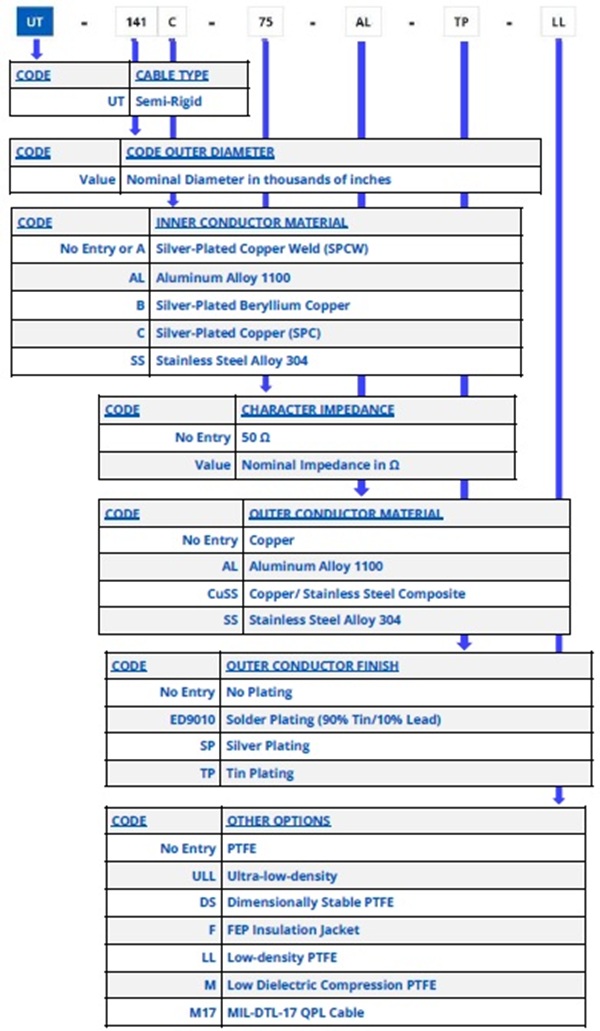

■品番構成
|
| UTシリーズの品番体系は、特に標準ケーブルにおいて、シンプルかつ短く、非常に分かりやすい構成となっています。構成部品に使用される材料は、各ケーブル仕様の項目内に個別に記載されています。 |
 |
| ↑クリックすると表が拡大します↑ |
■スタンダード 50 Ω Copper & 50 Ω Aluminum
|
 |
外径:0.013インチ〜0.390インチまでのスタンダードタイプ。外導体には銅、アルミニウム、銀メッキ、スズメッキなどの材質を選択可能です。 |
| 品 番 |
M17番号 |
製 品 |
データシート |
| UT-013 |
- |
0.013" Silver-plated Copper Weld (SPCW) inner conductor, and
PTFE dielectric material. RoHS Compliant. |
 |
| UT-020 |
- |
0.020" Silver-plated Copper Weld (SPCW) inner conductor, and
PTFE dielectric material. RoHS Compliant. |
|
| UT-034-M17 |
M17/154-00001 |
0.034" Silver-plated Copper Weld (SPCW) inner conductor, and
PTFE dielectric material. |
|
| UT-034C |
- |
0.034" Silver-plated Copper (SPC) inner conductor, and PTFE
dielectric material. RoHS compliant. |
|
| UT-047-M17 |
M17/151-00001 |
0.047" Silver-plated Copper Weld (SPCW) inner conductor, and
PTFE dielectric material. |
|
| UT-047C |
- |
0.047" Silver-plated Copper (SPC) inner conductor, and PTFE
dielectric material. RoHS compliant. |
|
| UT-056 |
- |
0.056" Silver-plated Copper Weld (SPCW) inner conductor, and
PTFE dielectric material. RoHS compliant. |
|
| UT-056-STR |
- |
0.056" Silver-plated Copper Weld (SPCW) inner conductor, and
PTFE dielectric material. RoHS compliant. |
|
| UT-070C |
- |
0.070" Silver-plated Copper (SPC) inner conductor, and PTFE
dielectric material. RoHS compliant. |
|
| UT-085-M17 |
M17/133-00006 |
0.085" Silver-plated Copper Weld (SPCW) inner conductor, PTFE
dielectric. RoHS compliant |
|
| UT-085C-M17 |
M17/133-00008 |
0.085" Silver-plated Copper (SPC), PTFE dielectric. RoHS compliant. |
|
| UT-085C-H |
- |
0.085" Silver-plated Copper (SPC), PTFE dielectric. RoHS compliant |
|
| UT-085-H-M17 |
M17/133-00002 |
0.085" Silver-plated Copper (SPC), PTFE dielectric. RoHS compliant |
|
| UT-141-SA-M17 |
M17/130-00004 |
0.141" Silver-plated Copper Weld (SPCW) inner conductor, and
PTFE dielectric material. RoHS compliant. |
|
| UT-141C |
- |
0.141" Silver-plated Copper (SPC) inner conductor, and PTFE
dielectric material. RoHS Compliant. |
|
| UT-250A-M1 |
M17/129-RG401 |
0.250" Non-magnetic Silver-plated Copper (SPC) inner conductor, and
PTFE dielectric material. |
|
| UT-325C |
- |
0.325" Silver-plated Copper (SPC) inner conductor, and PTFE
dielectric material. RoHS Compliant. |
|
| UT-390C |
- |
0.390" Silver-plated Copper (SPC) inner conductor, and PTFE
dielectric material. RoHS Compliant. |
|
| 品 番 |
M17番号 |
製 品 |
データシート |
| UT-034-SP |
- |
0.034" Silver-plated Copper Weld (SPCW) inner conductor and
PTFE dielectric material. RoHS compliant. |
|
| UT-047-SP |
- |
0.047" Silver-plated Copper Weld (SPCW) inner conductor and
PTFE dielectric material. RoHS compliant. |
|
| UT-085C-SP |
- |
0.085" Silver-plated Copper (SPC) inner conductor and PTFE
dielectric material. RoHS compliant. |
|
| UT-085-SP-M17 |
- |
0.085" Silver-plated Copper inner conductor and PTFE dielectric.
RoHS compliant. |
|
| UT-141-SA-SP-M17 |
M17/130-00012 |
0.141" Silver-plated Copper Weld (SPCW) inner conductor and
PTFE dielectric. RoHS compliant. |
|
| UT-141C-SP |
- |
0.141" Silver-plated Copper (SPC) inner conductor and PTFE
dielectric material. RoHS compliant. |
|
| UT-250C-SP |
- |
0.250" Silver-plated Copper (SPC) inner conductor and PTFE
dielectric material. RoHS compliant. |
|
| 品 番 |
M17番号 |
製 品 |
データシート |
| UT-034-TP-M17 |
M17/154-00002 |
0.034" Silver-plated Copper Weld (SPCW) inner conductor and
PTFE dielectric material. RoHS compliant. |
|
| UT-047-TP-M17 |
M17/151-00002 |
0.047" Silver-plated Copper Weld (SPCW) inner conductor and
PTFE dielectric material. RoHS compliant. |
|
| UT-085C-H-TP-M17 |
- |
0.085" Silver-plated Copper Weld (SPCW) inner conductor and
PTFE dielectric material. RoHS compliant. |
|
| UT-085C-TP-M17 |
- |
0.085" Silver-plated Copper inner conductor and PTFE dielectric.
RoHS compliant. |
|
| UT-085-H-TP-M17 |
- |
0.085" Silver-plated Copper Weld (SPCW) inner conductor and
PTFE dielectric. RoHS compliant. |
|
| UT-085-TP-M17 |
- |
0.085" Silver-plated Copper Weld (SPCW) inner conductor and
PTE dielectric material. RoHS compliant. |
|
| UT-141-HA-TP-M17 |
M17/130-00001 |
0.141" Silver-plated Copper Weld (SPCW) inner conductor and
PTFE dielectric material. RoHS compliant. |
|
| UT-141-SA-TP-M17 |
M17/130-00005 |
0.141" Silver-plated Copper Weld (SPCW) inner conductor and
PTFE dielectric material. RoHS compliant. |
|
| UT-141C-TP |
- |
0.141" Silver-plated Copper (SPC) inner conductor and PTFE
dielectric material. RoHS compliant. |
|
| UT-215-TP |
- |
0.215" Silver-plated Copper Weld (SPCW) inner conductor and
PTFE dielectric material. RoHS compliant. |
|
| UT-250A-TP-M17 |
- |
0.250" Non-magnetic Silver-plated Copper (SPC) inner conductor and
PTFE dielectric material. RoHS compliant. |
|
| 品 番 |
製 品 |
データシート |
| UT-085-AL |
0.085" Silver-plated Copper Weld (SPCW) inner conductor and
PTFE dielectric material. RoHS compliant. |
|
| UT-141A-AL |
0.141" Aluminum alloy center conductor and PTFE dielectric.
RoHS compliant. |
|
| 品 番 |
M17番号 |
製 品 |
データシート |
| UT-047-AL-TP |
- |
0.047" Silver-plated Copper Weld (SPCW) inner conductor and
PTFE dielectric material. RoHS compliant. |
|
| UT-085-AL-TP-M17 |
- |
0.085" Aluminum alloy inner conductor and PTFE dielectric.
RoHS compliant. |
|
| UT-141-SA-AL-TP-M17 |
M17/130-00009 |
0.141" Silver-plated Copper Weld (SPCW) inner conductor and
PTFE dielectric material. RoHS compliant. |
|
| UT-250C-AL-TP |
- |
0.250" Silver-plated Copper (SPC) inner conductor and PTFE
dielectric. RoHS compliant. |
|
■低ロスタイプ 50 Ω Copper & 50 Ω Aluminum
|
 |
従来のソリッドPTFEセミリジッドケーブルと比較して、低い減衰量、優れた温度依存位相安定性、そしてより高い動作温度範囲を実現します。
外導体材質として、銅、スズめっき銅、およびスズめっきアルミニウムの各種仕様が選択可能です。 |
| 品 番 |
製 品 |
データシート |
| UT-031-LL |
0.031" Low-loss Silver-plated Copper Weld (SPCW) inner conductor,
and low-density PTFE dielectric. RoHS Compliant. |
|
| UT-047C-LL |
0.047" Low-loss Silver-plated Copper (SPC) inner conductor, and
low-density PTFE dielectric. RoHS Compliant. |
|
| UT-070-LL |
0.070" Low-loss Silver-plated Copper Weld (SPCW) inner conductor,
and low-density PTFE dielectric. RoHS Compliant. |
|
| UT-085C-LL |
0.085" Low-loss Silver-plated Copper (SPC) inner conductor, and
low-density PTFE dielectric. RoHS Compliant. |
|
| UT-120C-LL |
0.120" Low-loss Silver-plated Copper (SPC) inner conductor, and
low-density PTFE dielectric. RoHS Compliant. |
|
| UT-141C-AL-TP-LL |
0.141" Low-loss Silver-plated Copper (SPC) inner conductor, and
low-density PTFE dielectric. RoHS Compliant. |
|
| UT-250C-LL |
0.250" Low-loss Silver-plated Copper (SPC) inner conductor, and
low-density PTFE dielectric. RoHS Compliant. |
|
| 品 番 |
製 品 |
データシート |
| UT-031-TP-LL |
0.031" Low-loss Silver-plated Copper Weld (SPCW) inner conductor,
and low-density PTFE dielectric. RoHS Compliant. |
|
| UT-047C-AL-TP-LL |
0.047" Low-loss Silver-plated Copper (SPC) inner conductor, and
low-density PTFE dielectric. RoHS Compliant. |
|
| UT-070-TP-LL |
0.070" Low-loss Silver-plated Copper Weld (SPCW) inner conductor,
and low-density PTFE dielectric. RoHS Compliant. |
|
| UT-085C-AL-TP-LL |
0.085" Low-loss Silver-plated Copper (SPC) inner conductor, and
low-density PTFE dielectric. RoHS Compliant. |
|
| UT-120-TP-LL |
0.120" Low-loss Silver-plated Copper inner conductor, Low-density PTFE
dielectric, Tin-plated copper outer conductor, RoHS compliant |
|
| UT-250C-TP-LL |
0.250" Low-loss Silver-plated Copper (SPC) inner conductor, and
low-density PTFE dielectric. RoHS Compliant. |
|
■非50Ω Non-50 Ω Copper
|
 |
特殊インピーダンス対応セミリジッドケーブルは、5〜100オームのインピーダンスおよび0.020〜0.250インチの外径に対応しており、あらゆるインピーダンスマッチングの要求に最適なソリューションを提供します。
外導体材質として、銅およびスズめっき銅の仕様が選択可能です。 |
| 品 番 |
製 品 |
データシート |
| UT-020-13 |
0.020" 13Ω Silver-plated Copper Weld (SPCW) inner
conductor, and PTFE dielectric material. RoHS Compliant. |
|
| UT-034-25 |
0.034" 25Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
| UT-034-95 |
0.034" 95Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
| UT-034C-10 |
0.034" 10Ω Silver-plated Copper (SPC) inner conductor, and
PFA dielectric material. RoHS Compliant. |
|
| UT-034C-17 |
0.034" 17Ω Silver-plated Copper (SPC) inner conductor, and
PTFE dielectric material. RoHS Compliant. |
|
| UT-038C-25 |
0.038" 25Ω Silver-plated Copper (SPC) inner conductor, and
PTFE dielectric material. RoHS Compliant. |
|
| UT-043C-10 |
0.043" 10Ω Silver-plated Copper (SPC) inner conductor, and
PFA dielectric material. RoHS Compliant. |
|
| UT-044-12 |
0.044" 12Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
| UT-047-70 |
0.047" 70Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
| UT-047C-35 |
0.047" 35Ω Silver-plated Copper (SPC) inner conductor, and
PTFE dielectric material. RoHS Compliant. |
|
| UT-062-18 |
0.062" 18Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
| UT-062C-18 |
0.062" 18Ω Silver-plated Copper (SPC) inner conductor, and
PTFE dielectric material. RoHS Compliant. |
|
| UT-070C-10 |
0.070" 10Ω Silver-plated Copper (SPC) inner conductor, and
PFA dielectric material. RoHS Compliant. |
|
| UT-070C-25 |
0.070" 25Ω Silver-plated Copper (SPC) inner conductor, and
PFA dielectric material. RoHS Compliant. |
|
| UT-075C-10 |
0.075" 10Ω Silver-plated Copper (SPC) inner conductor, and
PFA dielectric material. RoHS Compliant. |
|
| UT-085C-15 |
0.085" 15Ω Silver-plated Copper (SPC) inner conductor, and
PFA dielectric material. RoHS Compliant. |
|
| UT-090C-25 |
0.090" 25Ω Silver-plated Copper (SPC) inner conductor, and
PFA dielectric material. RoHS Compliant. |
|
| UT-090C-35 |
0.090" 35Ω Silver-plated Copper (SPC) inner conductor, and
PTFE dielectric material. RoHS Compliant. |
|
| UT-130-93 |
0.130" 93Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
| UT-141-70 |
0.141" 70Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
| UT-141-75 |
0.141" 75Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
| UT-141-100 |
0.141" 100Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
| UT-141C-15 |
0.141" 15Ω Silver-plated Copper (SPC) inner conductor, and
PFA dielectric material. RoHS Compliant. |
|
| UT-141C-25 |
0.141" 25Ω Silver-plated Copper (SPC) inner conductor, and
PFA dielectric material. RoHS Compliant. |
|
| UT-141C-35 |
0.141" 35Ω Silver-plated Copper (SPC) inner conductor, and
PTFE dielectric material. RoHS Compliant. |
|
| UT-141C-75 |
0.141" 75Ω Silver-plated Copper (SPC) inner conductor, and
PTFE dielectric material. RoHS Compliant. |
|
| UT-250-75 |
0.250" 75Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
| 品 番 |
製 品 |
データシート |
| UT-020-13-TP |
0.020" 13Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
| UT-034-25-TP |
0.034" 25Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
| UT-038C-25-TP |
0.038" 25Ω Silver-plated Copper (SPC) inner conductor, and
PTFE dielectric material. RoHS Compliant. |
|
| UT-085-75-TP |
0.085" 75Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
| UT-085-93 |
0.085" 93Ω Silver-plated Copper Weld (SPCW) inner conductor,
and PTFE dielectric material. RoHS Compliant. |
|
●お見積のご用命、お問合せ等は こちらのフォーム
または電子メール ｉｎｆｏ＠ｃｏｍｃｒａｆｔ．ｃｏ．ｊｐ までお気軽に御連絡下さい。
|
|
|
|
■セミリジットケーブル／ケーブルアッセンブリ
